- DLAB MS7-H550-S Magnetic Hot Plate Stirrer
$800.00
Available: In Stock

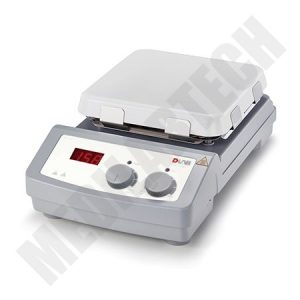

MS7-H550-S – a magnetic hot plate stirrer, designed by DLAB, is a specially crafted device for demanding tasks, that is fully optimized to work at high temperatures, all the way to 550°C. Feature rich, with a special glass ceramic work plate, is utilizes a brushless DC motor, that needs virtually no maintenance and works with an external PT1000 temperature sensor, for accurate readings. This versatile stirrer has application in an array of laboratories needing equipment for chemical synthesis, physical and chemical analysis, bio-pharmaceuticals.
Enquiry about DLAB MS7-H550-S Magnetic Hot Plate Stirrer
Features:
- The easy to read LED display offers accurate temperature monitoring
- Flexible speed range covering an array of speeds up to 1500rpm
- The durable work plate can be heated as high as 550°C
- Convenient external temperature control, done via connecting the PT1000 sensor, giving you accurate temp readings at ±0.2°C
- Safety features, including a “HOT” notification, that flashes even if the device is turned off, should the MS7-H550-S temperature be above 50°C
Product Specs
| Specifications | MS7-H550-S | |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | |
| Work plate material | Glass ceramic | |
| Motor type | Shaded pole motor | |
| Motor rating input | 15W | |
| Motor rating output | 1.5W | |
| Power | 1030W | |
| Heating output | 1000W | |
| Voltage | 100-120/200-240V 50/60Hz | |
| Stirring positions | 1 | |
| Max. stirring quantity, [H2O] | 10L | |
| Max. magnetic bar[length] | 80mm | |
| Speed range | 0-1500rpm | |
| Speed display | Scale | |
| Temperature display | LED | |
| Heating temperature range | Room temp.-550°C, increment 5°C | |
| Temperature control accuracy | ±10°C | |
| Overheating protection | 580°C | |
| Temperature display accuracy | ±1°C | |
| External temperature sensor | PT1000 (accuracy ±0.2) | |
| “Hot” warning | 50°C | |
| Protection class | IP21 | |
| Dimension [WxDxH] | 215x360x112mm | |
| Weight | 4.5kg | |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | |
Accessories
| Cat. No. | P/N | Descriptions | Power supply |
| 8030122211 | MS7-H550-S | LED Digital 7’’ Square Hotplate Magnetic Stirrer，glass ceramic hotplate，heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017 | USA plug,100V-120V/60Hz |
| USA plug,100V-120V/50Hz | |||
| Cn plug,200V-240V/50Hz | |||
| Euro plug,200V-240V/50Hz | |||
| Euro plug,200V-240V/60Hz | |||
| UK plug,200V-240V/50Hz |
| Accessories | |||
| Cat. No. | P/N | Descriptions | |
| 18900002 | MS 135.2 | Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro, MS7-H550-S | |
| 18900003 | MS 135.3 | Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900004 | MS 135.4 | Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900005 | MS 135.5 | Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900048 | MS 135.6 | Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900049 | MS 135.7 | Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk | |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk | |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk | |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk | |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk | |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk | |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk | |
| 18900013 | MSBAR65 | Stirrer bar（65mm x 8mm），1pc/pk | |
| 18900014 | MSBAR80 | Stirrer bar（80mm x 13mm)，1pc/pk | |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro | |
| 18900017 | Support clamp of PT1000 | ||
| 18900293 | Set includs support clamp of PT1000 and PT1000 Temperature sensor | ||
